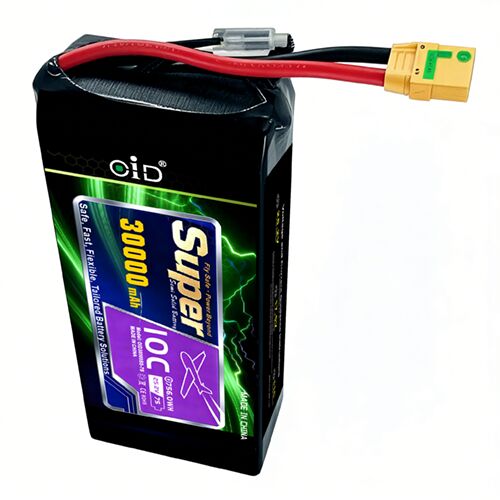

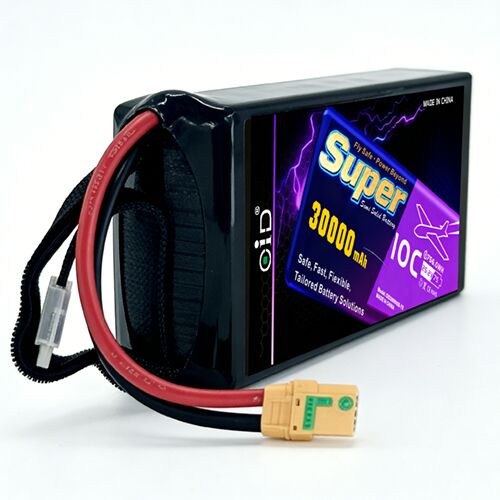

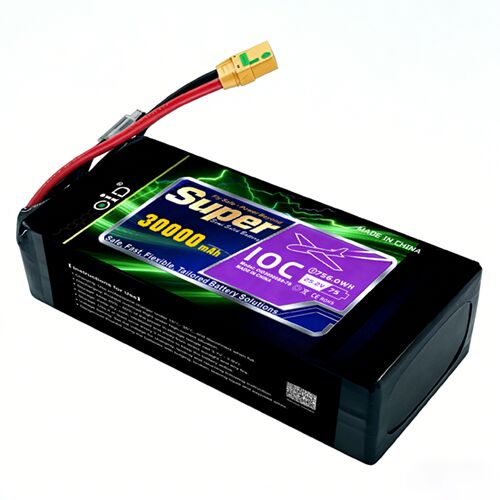

OID 22.2V 30000mAh Semi-Solid-State Drone Battery Pack - High Energy Density 5C Continuous Discharge for Heavy-Lift Drones
Power Your Drone Missions with Advanced Semi-Solid-State Technology
Engineered by Jianheng Technology for professional drone applications where reliability, endurance, and power are non-negotiable. This cutting-edge battery combines high energy density with exceptional safety, providing the ultimate power solution for heavy-lift drones, long-range mapping, and critical industrial operations.
Key Advantages
- Ultra-High Capacity & Energy Density: With a typical capacity of 30200mAh and energy density of ~320Wh/kg, this pack delivers extended flight times without excessive weight, maximizing operational range.
- High Power Output: Capable of 5C (150A) continuous discharge and 10C (300A) burst for up to 2 seconds, ensuring instantaneous power for aggressive maneuvers and heavy payloads.
- Enhanced Safety with Semi-Solid-State Chemistry: Advanced semi-solid-state lithium-ion technology offers improved thermal stability and safety compared to conventional LiPo batteries.
- Built for Durability: Robust 6-cell series configuration with low internal impedance (≤8.5mΩ) provides stable voltage output and long cycle life, maintaining ≥80% capacity after 300 cycles under 3C discharge conditions.
- Optimized for Industrial Use: Wide operating temperature range (charging: 10℃ to +45℃; discharging: -10℃ to +60℃) with strict safety testing for reliable performance in diverse environments.
Technical Specifications
| Specification |
Parameter |
| Nominal Voltage |
22.2V (6 cells in series) |
| Nominal Capacity |
30000mAh |
| Maximum Continuous Discharge |
150A (5C) |
| Maximum Burst Discharge |
300A (10C, ≤2 sec) |
| Internal Impedance |
≤8.5mΩ |
| Dimensions (L×W×H) |
206.0 × 95.5 × 77.0 mm |
| Weight |
Approx. 2016g |
Whether you're conducting aerial surveys, logistics delivery, or agricultural spraying, the OID Semi-Solid-State Drone Battery Pack from Jianheng provides the reliable, high-density energy your operations demand. Upgrade your drone's power system today and experience the difference of professional-grade battery technology.
